Brand Name : Recoda
Model Number : CM02-AHD
Certification : CE, ROHS, FCC
Place of Origin : Shenzhen, China
MOQ : 1
Payment Terms : L/C, T/T, Western Union
Supply Ability : 5000 pcs/ month
Delivery Time : 3-5 working days
Packaging Details : Standard carton
Weatherproof : IP67
Image sensor : 1/3” CMOS Sensor AR0130
Operating Temperature : -10℃~+50℃
Power : DC12V
Sync. System : Internal
SNR : ≥50dB
Price : negotiation

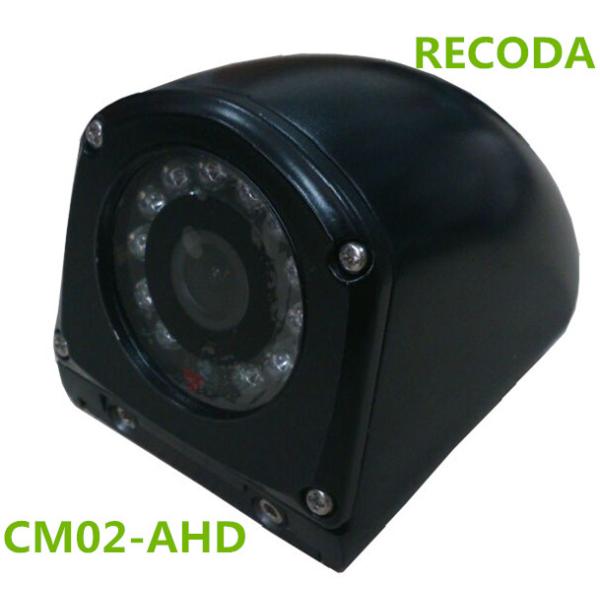

infrared night vision Car Reversing Camera IP67 1.3 Megapixel 960P 12 Leds
Model: CM02-AHD
High resolution, 1.3 Megapixel, 960P, 12VDC
12 Leds, with smart IR-CUT
Specifications:
| Model | CM02-AHD ,1.3MP |
| Pick up Device | 1/3” CMOS Sensor AR0130 |
| TV System | PAL |
| Picture Elements | 1280(H)*960(V) |
| Effective pixels | 1.3M pixels |
| Day-night mode | External control (default) / Auto / color / black and white |
| Infrared Spectrum | 850nm |
| S/N Ratio | More than 48 dB, (AGC Off) |
| Auto Gain Control | Auto |
| White Balance | Auto |
| Electronic Shutter | AUTO/ 1/50(1/60)-1/100,000sec |
| Back Light Compensation | Auto |
| Infrared LED | 12 LEDs |
| Infrared LED Range | 8 m |
| Video output | 1 Vp-p, 75Ωcomposite ,4 ways Din jack x1 |
| Audio Output | N/A |
| Mirror | N/A |
| Power Consumption | 170mA |
| Lens | Standard f3.6mm Fixed Megapixel Lens |
| Lens Mount | M12XP0.5mm Thread |
| Video footage to take up space | 1min≈32MB |
| Power Supply | 12V DC ±10% |
| Dimensions(L x W x H) | 76.4 x 60.5 x 56mm |
| Net Weight | 203g |
| Weatherproof | IP67 |
| Operating Temperature | -10°C to +50°C |
